Our history

TODAY

Today MAUS GROUP represents a full global solution partner for foundries providing automatic grinding machines, robotized cells, automatic green sand molding lines, handling equipments and coreshooting machines and vertical lathes.

2017

In 2017 MAUS acquired the brand FOUNDRY AUTOMATION, a manufacturer of coreshooting machines.

2015

In 2015 MAUS acquired the company FRITZ HANSBERG, an important brand in the foundry sector since 1949, specialized in the manufacturing of molding lines and coreshooting machines in cold box and inorganic.

PIONEERING FOUNDRY EQUIPMENT
DESIGN SINCE 1949

2014

In 2014 MAUS was taken over by a group of investors including the holding company Forever of the Rossi Cairo family and Italglobal Partners.

2003

In 2003 MAUS got the TUV certification ISO 9001.

1994

In 1994 MAUS became an independent company designing and manufacturing grinding machines, vertical turning machines and special purpose machines for several areas of application.

1986

Established in 1986 inside the Carraro Group as machine tool division for the group, MAUS followed and anticipated the evolution of industrial technologies in the machining processes.

MAUS Group is a full global solution partner for foundries providing automatic grinding machines, core making and handling equipments, automatic green sand moulding equipment and vertical lathes.

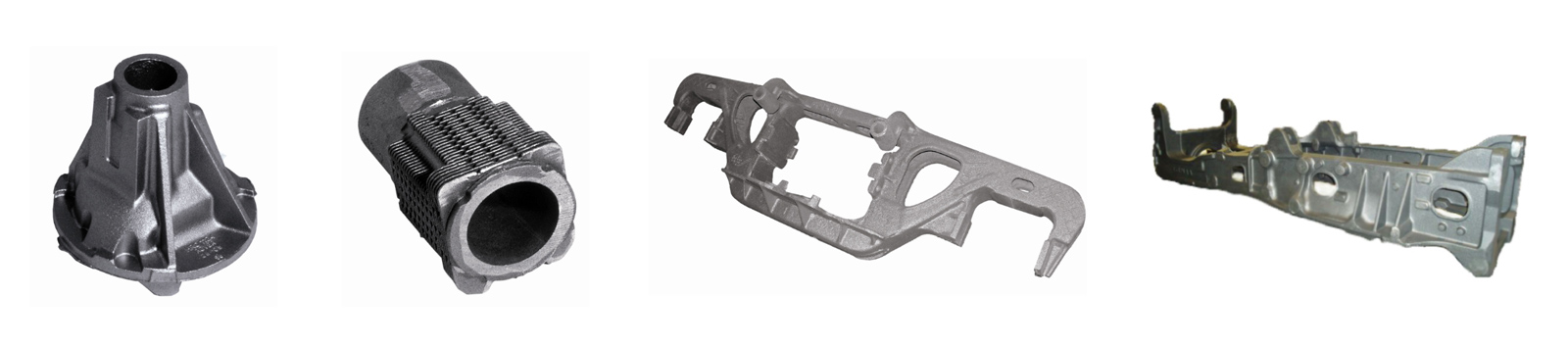

Thanks to its 30-year experience, is a leading company in automatic grinding and vertical turning for various application fields (automotive, agriculture, energy and railway). Maus offers a wide range of NC centres and robotized cells for the automatic grinding of parts up to 10.000 kg.

A long-established company that is world leader in the design and manufacture of coreshooters and green sand moulding equipment.

PIONEERING FOUNDRY EQUIPMENT
DESIGN SINCE 1949

A well-known brand specialized in designing and manufacturing core making machines.

NEWS

July 15^th 2019

MAUS is glad to inform that on July 4th 2019 the Court issued the final approval for the Maus 5 years plan.

The Company and its creditors and supplier will continue the ongoing activity under the approved procedure for the next 5 years. This represents an important step in continuing the relaunch of the business activities and the enhancement of know-how for a constant presence in the main world markets.

July 30^th 2019

FRITZ HANSBERG is glad to inform that on July 23rd 2019 the Court issued the final approval for the 5-year plan.

This represents another important result in order to achieve future goals.

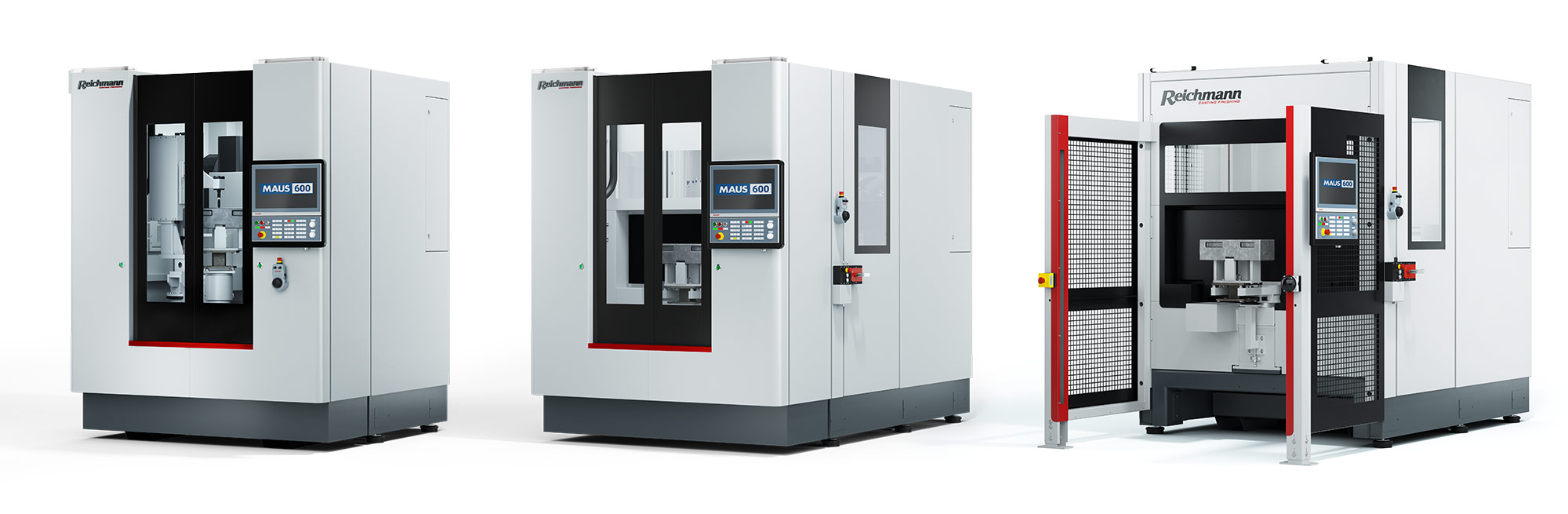

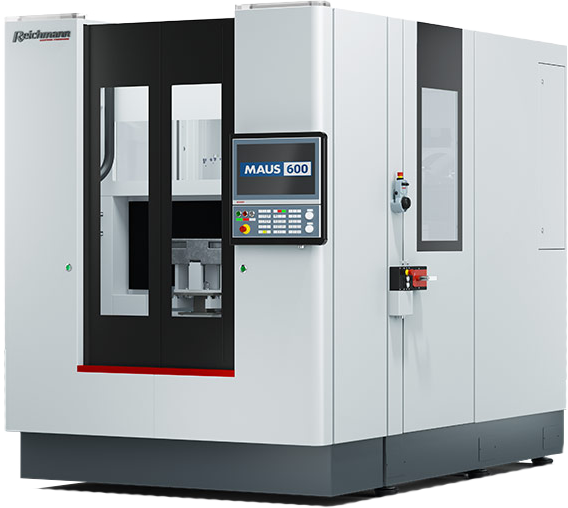

CNC MACHINES

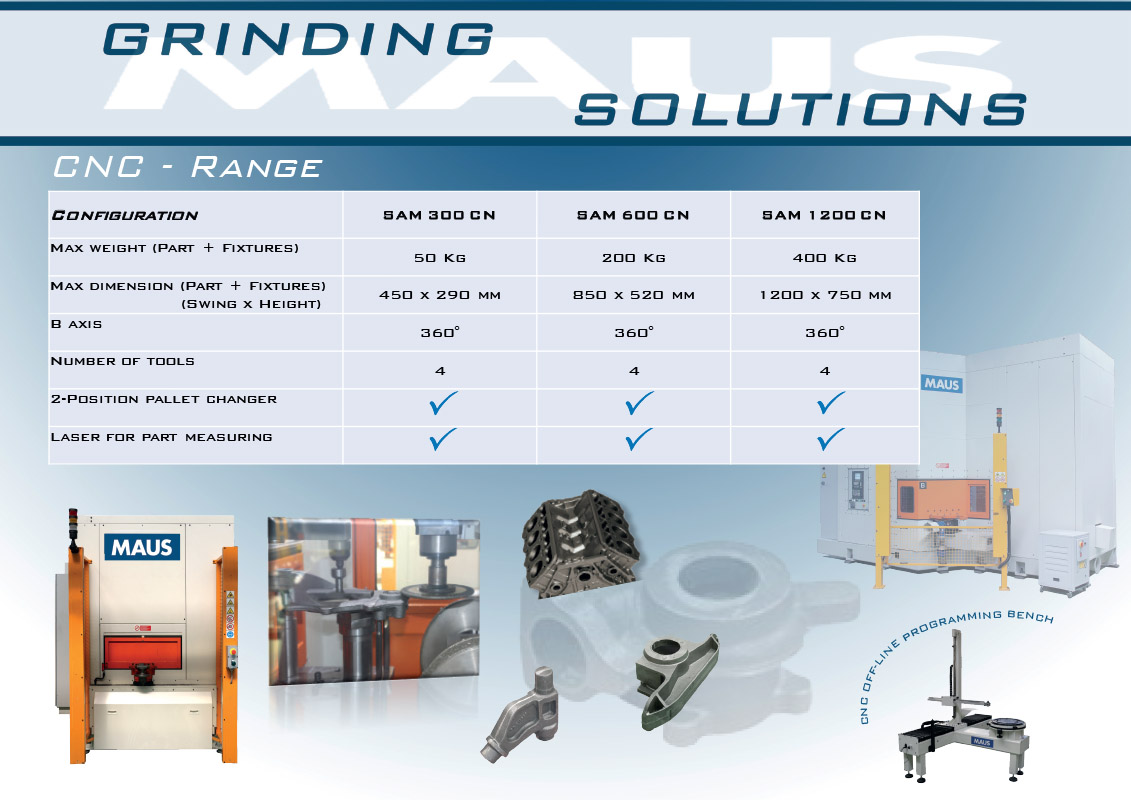

Configuration	Sam 300 cn	Sam 600 cn	Sam 1200 cn	Readygrind™
Max weight (part + fixtures)	50 kg	200 kg	400 kg	70 kg
Max dimension (part + fixtures) (swing x height)	450 x 290 mm	850 x 520 mm	1200 x 750 mm	700 x 300 mm
B axis	360°	360°	360°	360°
Number of tools	4	4	4	2
2-position pallet changer	✔	✔	✔	✔
Pallet changer	✔	✔	✔	✔
Laser for part measuring	✔	✔	✔	✔
Off-line programming				⬤

⬤ OPTIONAL ✔ STANDARD FEATURE

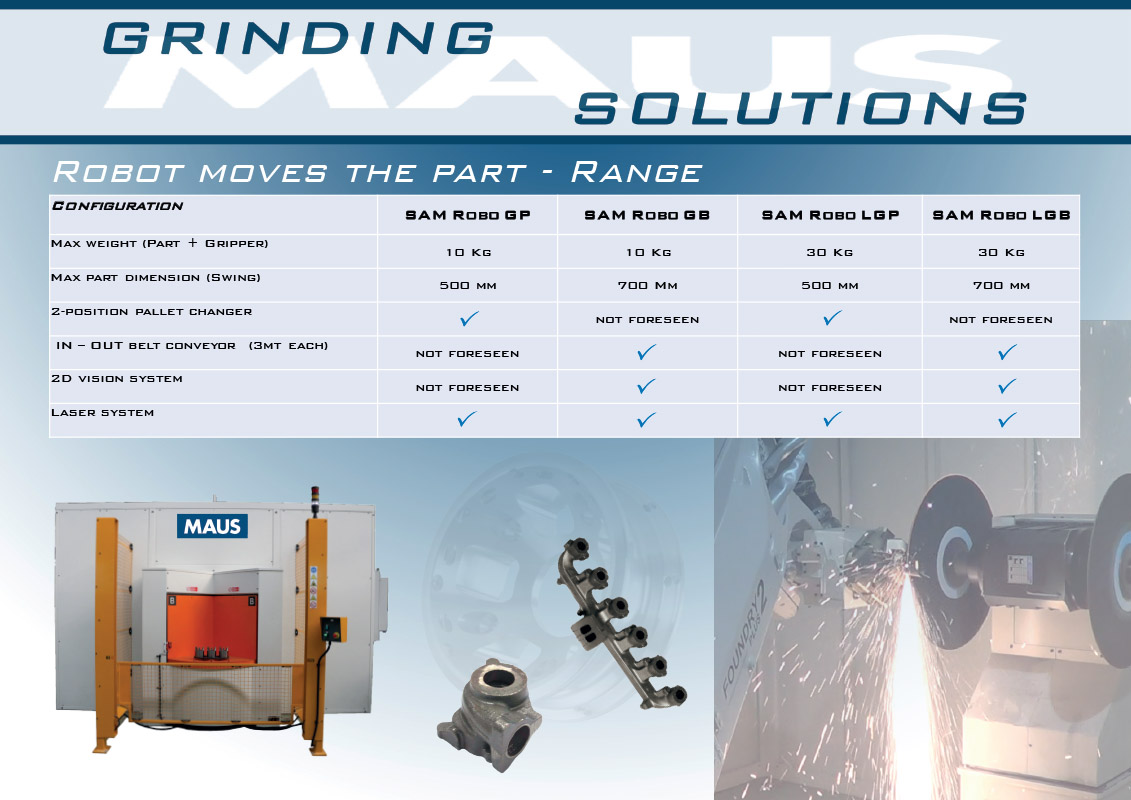

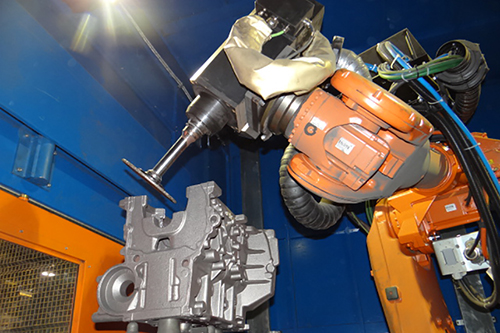

ROBOTIC CELLS

Configuration	Sam robo gp	Sam robo gb	Sam robo lgp	Sam robo lgb
Max weight (part + gripper)	10 kg	10 kg	30 kg	30 kg
Max part dimension (swing)	500 mm	700 mm	500 mm	700 mm
2-position pallet changer	✔	Not foreseen	✔	Not foreseen
In-out belt conveyor (3mt each)	Not foreseen	✔	Not foreseen	✔
2D vision system	Not foreseen	✔	Not foreseen	✔
Laser system	✔	✔	✔	✔

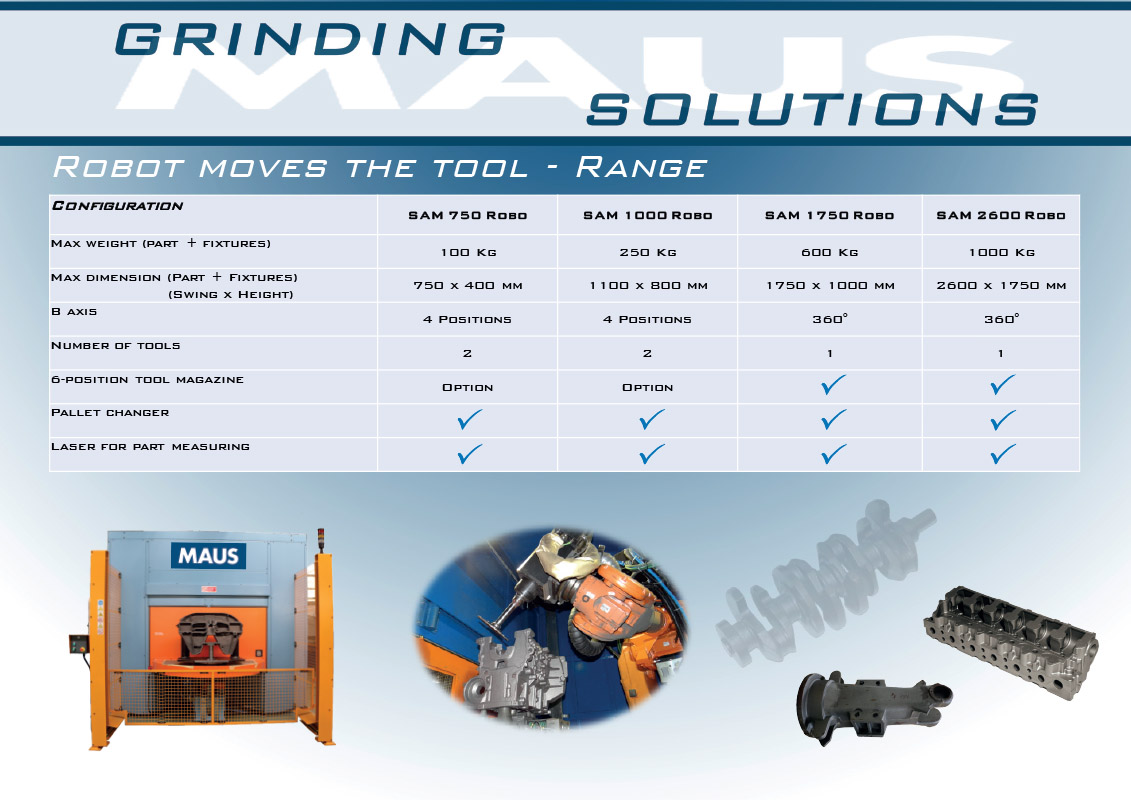

Configuration	Sam 750 robo	Sam 1000 robo	Sam 1750 robo	Sam 2600 robo
Max weight (part + fixtures)	100 kg	250 kg	600 kg	1000 kg
Max dimension (part + fictures) (swing x height)	750 x 400 mm	1100 x 800 mm	1750 x 1000 mm	2600 x 1750 mm
B axis	4 positions	4 positions	360°	360°
Number of tools	2	2	1	1
6-position tool magazine	⬤	⬤	✔	✔
Pallet changer	✔	✔	✔	✔
Laser for part measuring	✔	✔	✔	✔

⬤ OPTIONAL ✔ STANDARD FEATURE

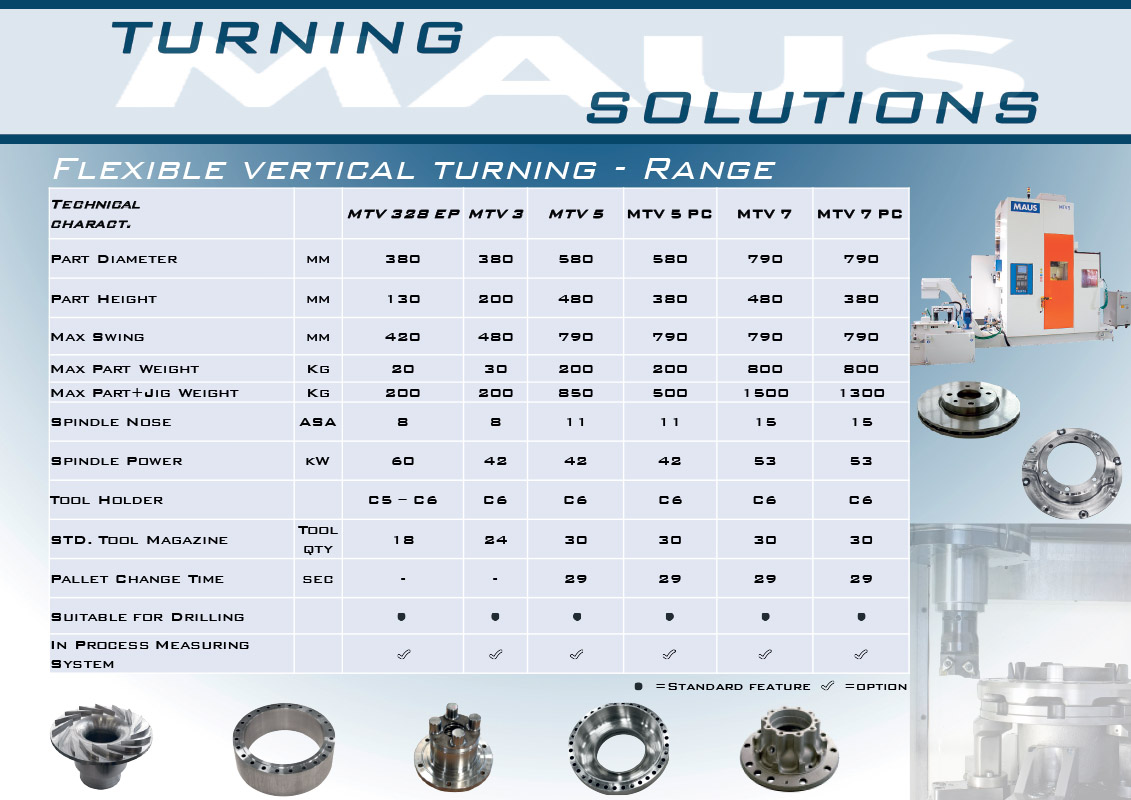

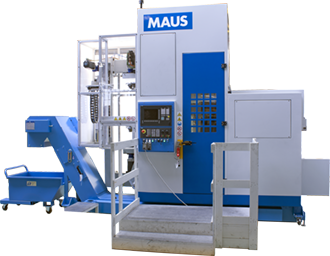

VERTICAL LATHES

Configuration		MTV 328 EP	MTV 3	MTV 5	MTV 5 PC	MTV 7	MTV 7 PC
Part diameter	mm	380	380	580	580	790	790
Part height	mm	130	200	480	380	480	380
Max swing	mm	420	480	790	790	790	790
Max part weight	kg	20	30	200	200	800	800
Max part+jig weight	kg	200	200	850	500	1500	1300
Spindle nose	asa	8	8	11	11	15	15
Spindle power	kw	60	42	42	42	53	53
Tool holder		c5-c6	c6	c6	c6	c6	c6
Std. tool magazine	tool qty	18	24	30	30	30	30
Pallet change time	sec	-	-	29	29	29	29
Suitable for drilling		⬤	⬤	⬤	⬤	⬤	⬤
In process measuring system		✔	✔	✔	✔	✔	✔

⬤ OPTIONAL ✔ STANDARD FEATURE

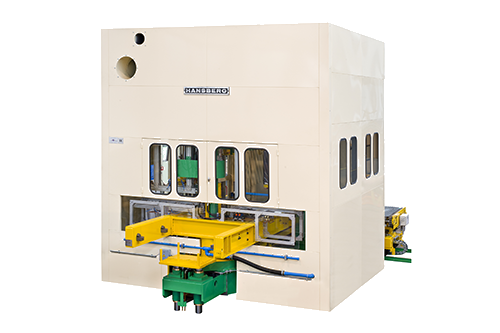

CORE SHOOTING MACHINES

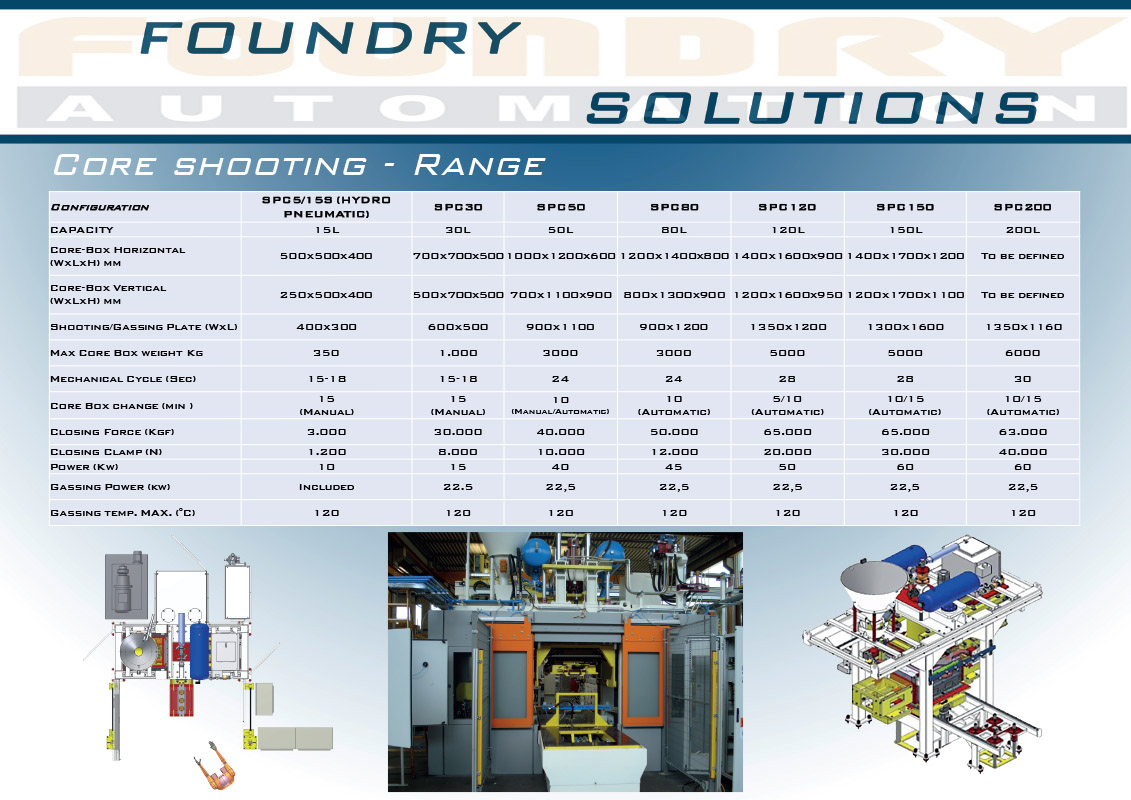

Configuration	spc156 (hydro pneumatic)	spc30	spc50	spc80	spc120	spc150	spc200
capacity	15l	30l	50l	80l	120l	150l	200l
core-box horizontal (wxlxh) mm	500x500x400	700x700x500	1000x1200x600	1200x1400x800	1400x1600x900	1400x1700x1200	To be defined
core-box vertical (wxlxh) mm	250x500x400	500x700x500	700x1100x900	800x1300x900	1200x1600x950	1200x1700x1100	To be defined
shooting/gassing plate (wxl) mm	400x300	600x500	900x1100	900x1200	1350x1200	1300x1600	1350x1160
max core box weight kg	350	1000	3000	3000	5000	5000	6000
mechanical cycle (sec)	15-18	15-18	24	24	28	28	30
core box change (min)	15 (manual)	15 (manual)	10 (manual/automatic)	10 (automatic)	5/10 (automatic)	10/15 (automatic)	10/15 (automatic)
closing force (kgf)	3.000	30.000	40.000	50.000	65.000	65.000	63.000
closing clamp (N)	1.200	8.000	10.000	12.000	20.000	30.000	40.000
power (kw)	10	15	40	45	50	60	60
gassing power (kw)	Included	22,5	22,5	22,5	22,5	22,5	22,5
gassing temp. max. (°C)	120	120	120	120	120	120	120

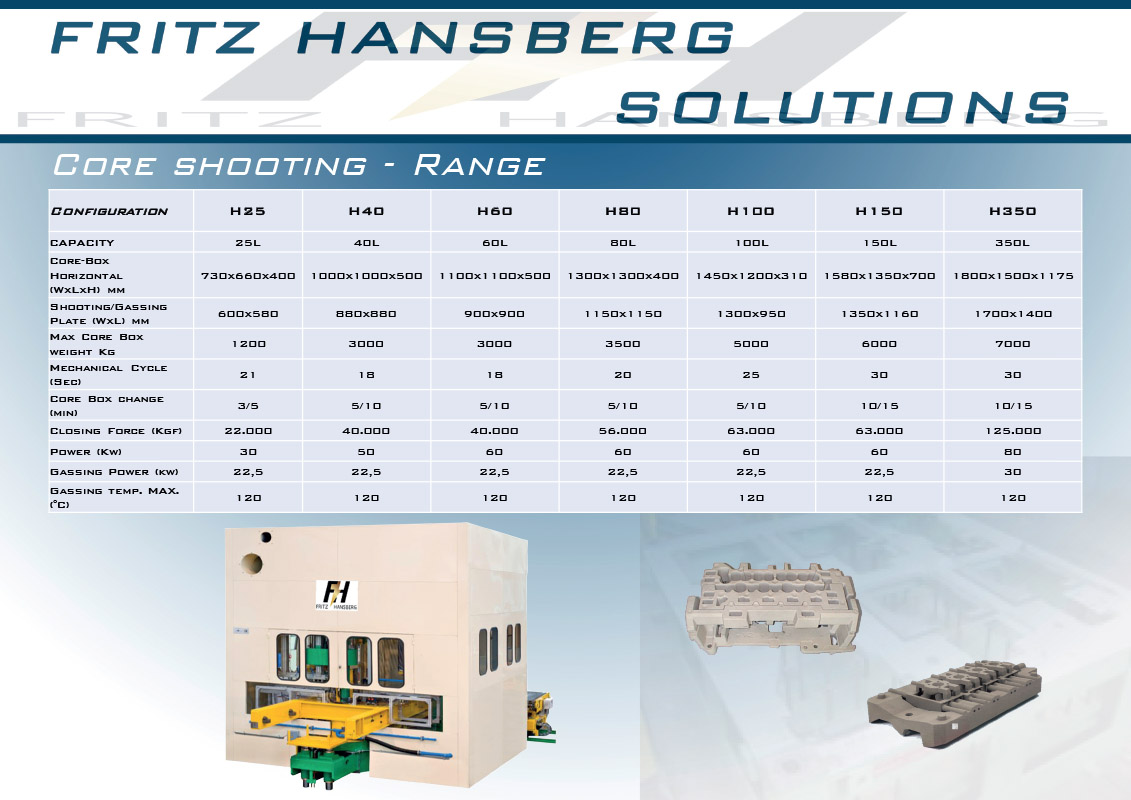

Configuration	h25	h40	h60	h80	h100	h150	h350
capacity	25l	40l	60l	80l	100l	150l	350l
core-box horizontal (wxlxh) mm	730x660x400	1000x1000x500	1100x1100x500	1300x1300x400	1450x1200x310	1580x1350x700	1800x1500x1175
shooting/gassing plate (wxl) mm	600x580	880x880	900x900	1150x1150	1300x950	1350x1160	1700x1400
max core box weight kg	1200	3000	3000	3500	5000	6000	7000
mechanical cycle (sec)	21	18	18	20	25	30	30
core box change (min)	3/5	5/10	5/10	5/10	5/10	10/15	10/15
closing force (kgf)	22.000	40.000	40.000	56.000	63.000	63.000	125.000
power (kw)	30	50	60	60	60	60	80
gassing power(kw)	22,5	22,5	22,5	22,5	22,5	22,5	30
gassing temp. max. (°C)	120	120	120	120	120	120	120

MAUS Group presents the ReadyGrind™ Revolution.
MAUS as an organization has recently decided to reassess the new market demands and to challenge itself by adapting the product to the realities of today’s global marketplace.

Download the Brochure

FLEXIBILITY AND QUALITY

The end goal was to develop a new automatic grinding machine that would provide more flexibility, with user friendly programming capabilities, an ease of operation and maintenance, lower delivery costs, reduced operating costs, a more attractive price and a very reasonable ROI, improving productivity, quality and profitability.

EASY TO PROGRAM

The new ReadyGrind™ is a grinding machine that is programmable either inside the machine with a joystick or off-line using a programming bench. It is capable of grinding iron, aluminum, brass/bronze or steel part plus fixture up to 70 kg (154 lbs.) with maximum dimensions of 700 mm (27.5 in.) swing by 300 mm (12 in.) high.

READY TO GRIND

The machine has one rotating electro-spindle with two tools, one attached to each side of the spindle with a laser measurement system, a tailstock, a two position pallet changer and Fanuc controls. ReadyGrind™ has a small footprint allowing it to fit inside a 20 ft. container and it weighs only 6,000 kg (13,227 lbs.), so it can be picked up and moved using a forklift.

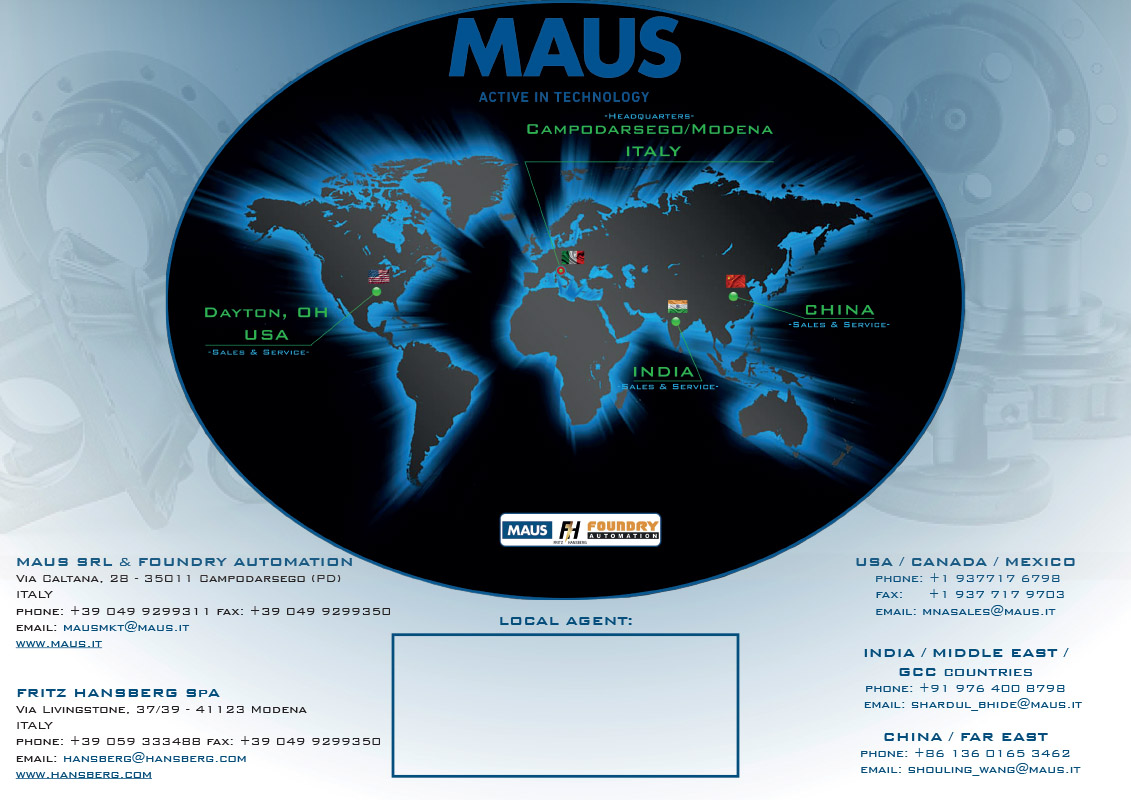

CONTACTS
